Endeavor Audio E-3 Mk2 Tower Speakers Preview

By

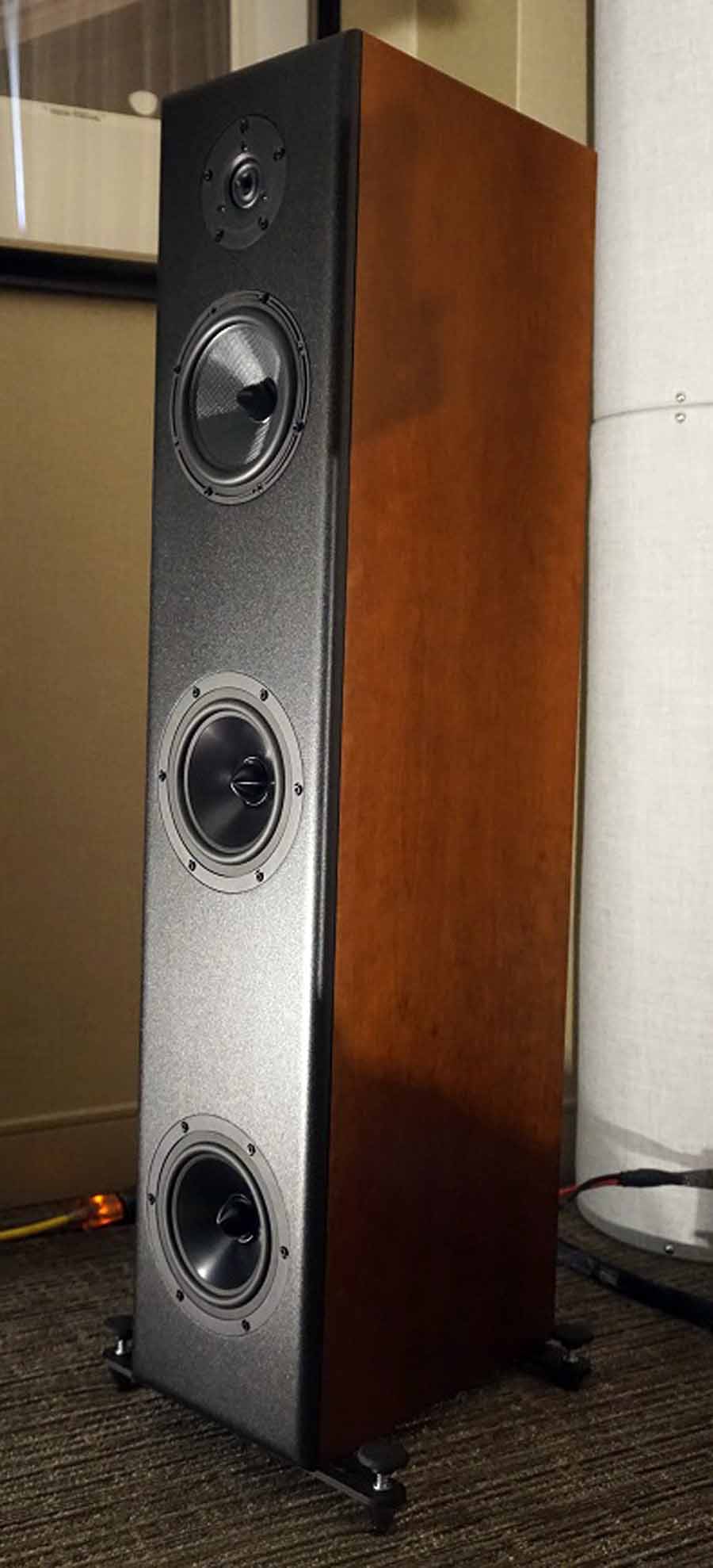

Endeavor Audio E-3 MK2 Speakers

Endeavor Audio E-3 MK2 Speakers

Summary

  • Product Name: E-3 Mk2
  • Manufacturer: Endeavor Audio
  • Review Date: May 02, 2016 10:00
  • MSRP: $8k/pair
  • First Impression: Pretty Cool
  • Frequency Range: 20 Hz-30 kHz
  • I.E.C. rating: 29Hz-22kHz, +/-2dB
  • Impedance Rating: 4 ohms (flat)
  • Sensitivity: 90dB@ 2.83 V/ meter
  • Bass Loading Type: 4th order Butterworth bass reflex design, critically damped to Q =0.7
  • Crossover Points: 220 Hz, 2 kHz
  • Size: 44” H x 9” W x 15” D - Width is 5” at rear of cabinet
  • Weight: 82 lbs. (100 lbs. in box)
  • Footers: Steel  Outriggers w/1.5” cone-shaped spikes, fully adjustable for Rake Angle
  • Connections: HQ Rhodium-plated five way binding posts, single pair
  • Woofers: 2- 175mm anodized aluminum coned woofers.  Double-stacked magnets provide fast transient response and great dynamics.  Faraday ring-type motor/voice coil, cooled with aluminum phase plugs and vented motors for low distortion
  • Midrange: 165mm Kevlar coned high performance midrange unit with Faraday ring motor/voice coil, phase plug provides linear response and low distortion. Top-class design & sound.
  • Midrange Loading: Tapered transmission line for low coloration and high dynamic range
  • Treble Unit: Dual Ring Radiator, rubberized fabric diaphragms, long throw suspension for low distortion and high dynamic range, Ferro-Fluid magnetic oil in gap for cooling at high volume levels, and large chamber for absorption of rear wave.
  • Voicing Information: The E-3MkII can be seen to be an extremely accurate monitor-type of system, but was carefully voiced to sound like a musical instrument rather than a “sterile” facsimile.  The bass range is extremely potent, yet so quick as to not overload your listening room.  The depth, image focus and dimensionality are top-class.
  • Warranty: Five-Year when purchased through an authorized dealer

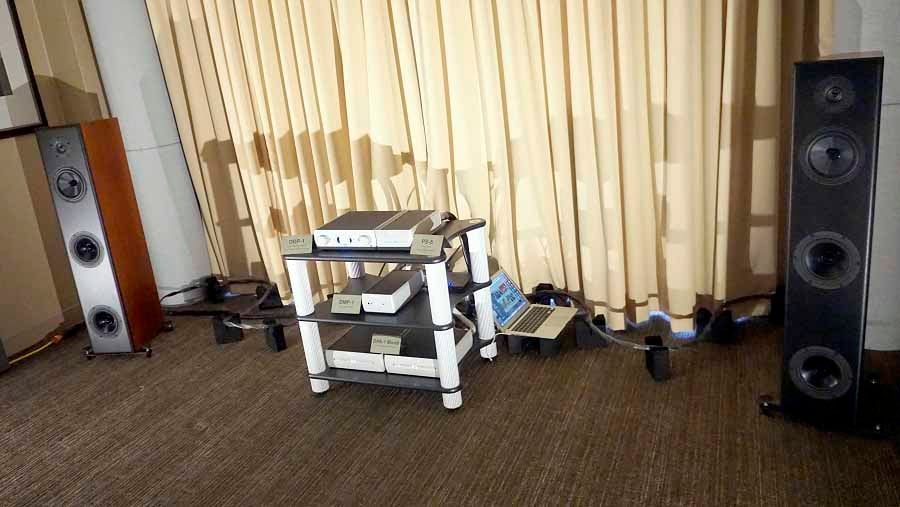

The brand new Endeavor Audio E-3 Mk2 speakers do not have as flashy appearance or exotic design as many of the other high-end speakers at the 2016 AXPONA show.  What they do have is a simple form factor and great sound. Their relatively plain but tasteful appearance is more than made up for the fantastic sonic imaging they can produce. After all, great speakers make you forget you are listening to speakers in a room and instead transport you to an auditory landscape determined by the sound engineer.

Endeavor Audio E3 mk2 SpeakerThe E-3 Mk2 accomplishes its goal of high-fidelity sound by paying close attention to every aspect of speaker design. To start with, the cabinet uses a trapezoidal shape in an effort to tame the standing waves normally seen in enclosures with parallel sidewalls. A dual ring radiator tweeter permits a high dynamic range with superior dispersion compared to conventional dome tweeters and brings a linear frequency response well into the ultrasonic range above human hearing. A 6.5” Kevlar midrange driver takes the range from 220 Hz to 1.8 kHz and uses a shorting ring and phase plug for reduced distortion. It is also backed by a tapered transmission line for precise control of backwave acoustic radiation from the woofer. Two 7” bass drivers with anodized aluminum cones also use shorting rings and phase plugs for tightly controlled bass. They are set in a vented cabinet that is critically damped to a Q of 0.7 while maintaining low frequency extension down to 30 Hz, +/- 2 dB. A Linkwitz-Riley crossover keeps all drivers phase coherent and time-aligned for the resultant sound to act as a simple reproducer of the recording, and not a stack of disparate sources of noise. For those readers who may not be technically savvy enough to understand all of the speaker jargon in the above description, be assured that it all adds up to a superb sound as I discovered first hand during my listening demos at the show.

The price of admission to the world of high-fidelity of a pair of Endeavor Audio E-3 Mk2s will set you back $8k. These are not the most expensive speaker at Axpona nor are they the least, but it is a safe investment for anyone looking for a great sound out of a modestly sized and conservatively styled speaker which can fit in any decor without worries of aesthetic clashing. One advantage of the E-3 Mk2s that might help offset their cost is that they have a steady 4 ohm impedance with no dips below that, so nearly any amp can be used to drive them.

Endeavor Audio speakers can be purchased at dealers covering North America, Europe, and Asia, and to find out where you can demo or purchase the E-3 Mk2, here is Endeavor’s dealer list.

Unless otherwise indicated, this is a preview article for the featured product. A formal review may or may not follow in the future.
