LMS Analyzer

by November 09, 2006

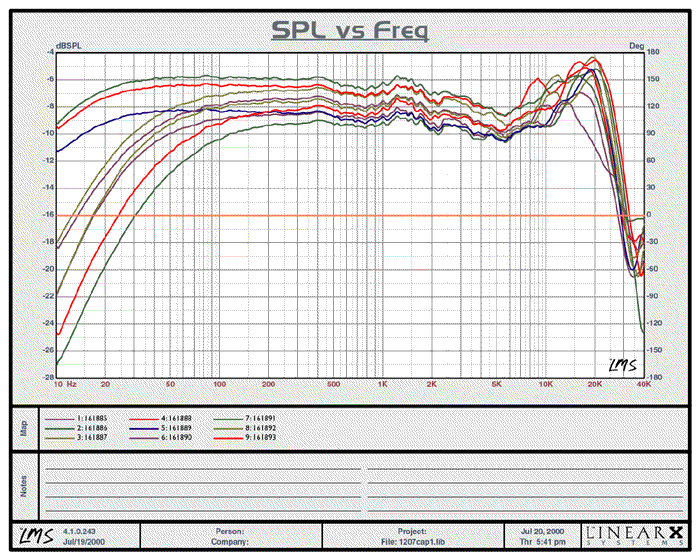

LMS 1/24th octave grapgh

LMS 1/24th octave grapgh

The LMS hardware will run on virtually any legacy, decade-old, crusty computer which provides a full length ISA bus slot. For laptop use, the PAC4 can provide this external slot capability, and interface to the computer using a serial COM port for communication. You'll need to buy the laptop off eBay from a guy named "Gus" who tinkers with stuff in his garage for a living, but it's possible.

The LMS PC card contains a low distortion sine wave oscillator, dual state variable tracking filters, mic preamp, and gated peak/average level detection circuitry. A line level output is provided, along with a balanced line input, and a direct powered microphone input. Any of four locations can be selected for measurement, and external microphone preamps can be supported with level calibration. The basic frequency range of the system spans 10Hz to 100kHz and features a dynamic range of 90dB equivalent to 16bit digital audio.

The high resolution of the system allows up to 200 log-spaced frequency data points to be taken per decade of frequency. This is equivalent to one data point per pixel on the screen! One of the most powerful features of LMS is the dual tracking filters. These filters allow many different types of measurements to be made. The filters can be set for FLAT, LowPass, HighPass, BandPass, and BandReject responses. The accuracy and flexibility of the LMS analyzer rivals systems costing many times more, and is certainly far easier to setup and operate for both novice and experienced users alike.

Overview

LMS is a swept sine wave analyzer for legacy PC computers and consists of an ISA full length PC slot card, connector interface cables, the Windows based application software, and includes a calibrated M31 microphone. LMS can be used for production QC testing of loudspeakers, engineering/development of loudspeakers, and a wide array of general purpose electroacoustic measurements.

The LMS system also includes its own precalibrated M31 measurement microphone. Absolute SPL measurements are made at the touch of the mouse! The small size of the M31 mic is also ideal for near field measurements.

The LMS system provides a vast array of powerful computer based features which are specifically focused on the unique requirements of loudspeaker development and QC production testing. While it operates on a "legacy" platform of decade-old PC architecture (i.e. ISA boards, not compatible with PCI slots) the system is robust.

LMS provides the ability to achieve very high log frequency resolution across many decades of frequency that typical FFTs can't match.

Features

  • Color printing through any Windows Printer
  • Curve Libraries now hold 99 Curves
  • Direct Single/Multiple curve transfer into LEAP-5
  • Multi Curve Copy/Paste using Clipboard for transfer
  • Advanced Speaker Parameter Derivation
  • Simulation of Loudspeaker Model Parameters
  • Extensive Graphics Vector and Raster Export
  • Manual real-time frequency sweep using mouse
  • Maximum sweep resolution now 800 log points
  • Macro Editor with syntax highlighting
  • MDF Editor for creating/editing any mic file for external mics
  • Curve Capture, distill actual curve data from raster images
  • Curve Editor, create/modify curves by graphical editing
  • Linear, Quadratic, and Cubic Interpolation routines
  • Enhanced capabilities for Post Processing Math operations
  • Enhanced capabilities for Polar Plot processing and resolution
  • Operating Systems: Win98, WinSE, WinME, Win2000, WinXP.



Specifications



Physical
Format Full Length ISA 8-bit PC slot card
ISA Bus Speed 8MHz-16MHz
PC card Size 13.2 x 4.2 inches
Connector Interface DB-15 Female
Power Requirements
DC Voltages +12V, -12V, +5V, -5V
DC Currents 200mA, 200mA, 230mA, 230mA
Microphone Supply +8.75Vdc @ 5mA
Power Consumption 7 Watts
Oscillator
Frequency Range Programmable; 10Hz-100KHz
Sweep Range 10Hz to 100kHz - 4 Decades
Sweep Scale Logarithmic
Frequency Resolution 200 Points per Decade, 1% Accuracy
Output Impedance 500 Ohms
Distortion 0.015%, 20Hz-20KHz
Amplitude Flatness ±0.1dB
Max Output Level +16dBm (5Vrms)
Attenuator Step Size 0.25 dB
Attenuator Range 0 to -60 dB
Gating Resolution 0.1mS, Zero Crossing Sync
Gating Time Range 0.1mS to 6 Seconds
State Variable Filters
Filter Complement 2- 2nd Order Tracking Programmable Filters
Filter Functions Flat, 2nd Order: LP, HP, BP, BR
Frequency Range Programmable; 10Hz-100KHz
Oscillator Tracking Ratio Any Ratio from 0.1:1 to 10:1
Tracking Flatness ±0.25 dB
Q Factor HP, LP, BP 1.0
BR Notch Depth 40dB Typical
Analyzer
Measurement Range +20dBm to -70; 90dB Dynamic Range
Detection Methods RMS Scaled Average, Gated Peak
Measurement Types Precision Settling, and Hi-speed single sample
Gating Resolution 0.1mS
Gating Time Range 0.1mS to 6 Seconds
Balanced Line input
Input Impedance 100K Ohms
Freq Response -0.5dB 10Hz-100KHz
Balanced Input CMR 40dB 20Hz-20KHz
Maximum Input +20dBm
M31 Microphone
Construction Type Condenser Electret Element
Internal Preamp Direct Powered Hybrid Preamp/Buffer
Accuracy ±5dB uncal; ±1dB cal; 10Hz-40KHz
Maximum Level 125dB-SPL
Dimensions 8mm/0.351In diameter, 100mm/4.00In long
Finish & Termination Black Anodized Aluminum, 3 Pin XLR
