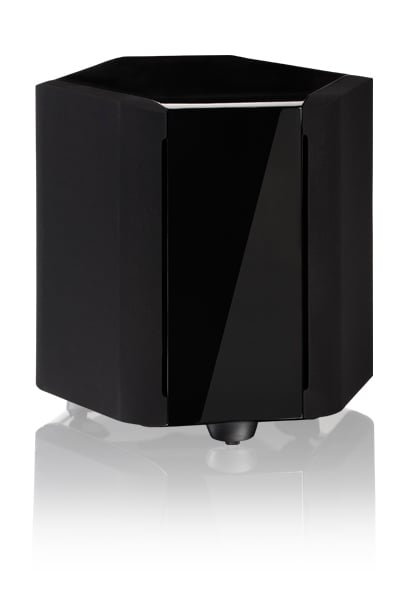

Paradigm Sig Sub 2
- Product Name: Signature Sub 2 Subwoofer
- Manufacturer: Paradigm
- Performance Rating:
- Value Rating:
- Review Date: October 31, 2006 08:25
- MSRP: $ 8999
Six 10” long throw woofers in a radial arrangement
Hexagonal sealed enclosure
Non-removable grilles
Amplifier: 4,500 watts rms, 9000 watts dynamic power (When connected to a 240v AC main)
Paradigm PBK interface
Frequency Extension: 7Hz DIN (Indicates -3dB in a typical listening room)
Finishes: Black ash, Cherry, Piano Black
Dimensions (H/W/D): 24.5” x 23.75” x 22.375” (23.75” Hexagonal cabinet diameter)
Weight: 230 lbs. (310 lbs shipped)
Warranty: 3 years bumper to bumper
Designed, Engineered and Manufactured in North America
Driver features
Mineral filled co-polymer polypropylene cone with RCR (Resonance Control Ribbing)
25.2lb FEA optimized triple stacked ferrite magnet structure
3” diameter 10 layer aluminum voice coil
AVS (Airflow Ventilation System) die-cast aluminum frame
Dual large diameter Nomex cloth spiders
Oversized pole piece with integrated aluminum heat sink
Through pole voice coil leads
Amplifier Features
Efficient Ultra-Class-D technology
PFC (Power Factor Correction)
Extreme output capabilities 4,500w rms, 9,000w dynamic power
Universal Input Power (Connects to any line voltage 108-265v)
Internal DSP (Digital Signal Processing)
Solid 5/8” thick machined aluminum plate for strength and heat sinking
Adjustable input gain
35-150Hz variable low pass crossover with bypass
Phase: Adjustable from 0-180 degrees
Auto on/off
Detachable AC cord set
Inputs/Outputs
Unbalanced (RCA) inputs
Balanced XLR input
1/8” 12V trigger
PBK interface port (USB)
Pros
- Neutral sound
- Loads of headroom
- Subterranean deep bass extension
- Impeccable finish
- Dummy proof
- Top shelf design and parts quality
- Easy to integrate
Cons
- Expensive
- Very heavy
