Panasonic PT-AX200U LCD Projector Review

by November 05, 2007
Panasonic PT-AX200U LCD Projector

Panasonic PT-AX200U LCD Projector

  • Product Name: PT-AX200U LCD Projector
  • Manufacturer: Panasonic
  • Distributor: ProjectorPeople
  • Performance Rating: StarStarStarStar
  • Value Rating: StarStarStarStarStar
  • Review Date: November 05, 2007 12:52
  • MSRP: $ 1999

Brightness: 2000 ANSI lumens (high power mode)
Contrast: Up to 6000:1 (full on/off)
Resolution: 1280 x 720 native HD resolution (1920 x 1080 maximum)
Aspect Ratio: Widescreen native 16:9 aspect ratio (4:3 compatible)
Supported Screen Size: 40-200 inches diagonal
LCD Panel: D-5; 3 x 0.7” polysilicon active matrix
Optical System: Dichroic mirror separation/prism synthesis system
Iris: Dynamic Iris optical system constantly adjusts the brightness and gamma characteristics in real time
Video Features: Dynamic Sharpness Control adjusts video signal waveforms based on the difference in brightness of adjacent pixels, Intelligent Light Harmonizer 2 dynamically varies gamma according to the ambient room light, Progressive Cinema Scan (3/2 pulldown) and HD IP, Cinema Color Management technology for faithful and accurate color representation, 10-bit full digital processing and 10-bit gamma correction, 7 picture modes for customizing color adjustments, Smooth Screen technology for smooth, film-like images
Scanning Formats: 480i/576i/1080i and 480p/576p/720p/1080p/24/60 (PAL equivalents supported)
Video Inputs: 2xHDMI-HDCP, component, composite, S-video, and PC/RGB (HD15)

Projection Lens: 2x optical zoom; f = 21.7 – 43.1 mm. F/1.9 – 3.1, manual focus & zoom
Lens Shift: Vertical and horizontal (65% vertical, 24% horizontal)
Keystone Correction: +/- 30 degrees (vertical)
Lamp: 220 W UHM lamp
Mounting: ceiling, desk, front/rear (menu configurable)
Power Supply: 100-240 volts, 50-60Hz
Power Consumption: 290 watts (maximum), 0.8 watts (standby mode with fan stopped)
Operating Temperature: 32 – 104 degrees F (0 – 40 degrees C); 20-80% humidity (no condensation)
Fan: Whisper quiet 26dB operation (in low mode)
Projection Method: Front/rear/ceiling mount/table-top

Uniformity Ratio: 85% (center-to-corner)

Remote Control: Learning remote; 7m range on axis, 3 VDC power supply, AAA x 3 batteries
Standard Accessories
: Power cord, Wireless remote control unit, batteries for remote control (UM-3 x 2)
Optional Accessories: Serial adapter for RS-232 control
Dimensions: 15.5” x 4.4” x 11.8” in (395 x 112 x 300 mm)

Weight: 10.8 lbs (4.9 kg)

Pros

  • No screen door effect
  • Excellent contrast
  • Game mode for fast response and more visible shadow detail
  • Great "out of the box" colors
  • Backlit remote
  • Light Harmonizer 2 automatic picture adjustment
  • 1080p/24/60 support

Cons

  • Potential HDCP compatibility issues
  • Non-standard power cable
  • No 12V trigger



PT-AX200U Features & Comparisons

I experienced a sense of deja vu when I opened up the PT-AX200U projector, took some photos and set it up in my theater room. The chassis and feel of the unit was nearly identical to the PT-AX100U I had reviewed last year. In fact, the only physical difference I noted immediately was the presence of an additional HDMI input on the connector panel – a welcome addition, but was there more under the hood of this LCD projector? As I knew from this year's demo at CEDIA there were indeed several new features of Panasonic's incremental but impressive projector update – not the least of which involved some tantalizing gaming-centric features.

Features and Favorites

While the Panasonic PT-AX200U isn't exactly a “from the ground up” rewrite of the prior AX100U model, there are several features worth noting, both old and new:

  • Light Harmonizer 2 with Ambient Light Sensor
    Instead of the “gamma jump” which occurred in the original Light Harmonizer system, the second iteration of this technology also configures Lamp Power output, Iris setting and even Sharpness to get the best possible results in ambient light conditions.
  • Smooth Screen Technology
    Smooth Screen makes this 720p projector look very much like 1080p, especially when viewed from close distances as is the case in my room (I like a BIG screen). Image softness doesn't seem to be an issue and the technology really is impressive, given the fact that any time you think about defocusing the edges of pixels you assume there will be a downside.
  • Dynamic Iris
    Finally, a Dynamic Iris system that doesn't sound like the final scene of the Terminator when he's reaching through the bars to get at Linda Hamilton. I can't stand noisy Iris systems and typically turn them off. Panasonic has solved this issue and they did it just for me... er, that's my story and I'm sticking to it.
  • Vertical and Horizontal Lens Shift
    Lens shift on LCD projectors? That's old news. Yeah, tell that to DLP projectors at this price. It's cool, offers an incredible flexibility for installations and deserves to continue to be mentioned until all projection technologies incorporate it in products costing less than $2000.
  • Game Mode
    Saving the best for last, the PT-AX200U features a special “Game” mode which adjusts the internal processing (presumably bypassing some of the unneeded video processing) to improve video response (up to 3x) and reduce lag times during game play. We think this is a real propeller-head feature, but for those of you who game more than you sleep this is likely going to be a welcome addition. Tom Taylor, or Tsquared as he's known in the Major League Gaming community, demoed this feature at CEDIA this year. Being a professional gamer, I'll take it that it's significant to people who take their Xbox very seriously. According to Tom, the lag was all but gone and the system made gaming much more enjoyable.

Using the New Features

The most stand-out feature is the addition of Game mode. Not only does it reduce game lag time, but it also alters the gamma so that darker scenes (you know the ones that are very annoying to play when you don't have your room completely blacked out) are more revealing. I tested this out with Halo3 and the Game mode became my best friend almost instantly. Suddenly, I could see where I was going, even when there was a small amount of ambient light leaking into my theater room. The other notable addition is the presence of two HDMI inputs. While I must admit that I only run a single line to my projector (who wants to pay for dual 25-foot runs of HDMI?) this may be a nice thing for anyone looking to have discrete sources and unique calibration settings for each. I left Light Harmonizer off on the PT-AX100U, simply because it was more of a gimmick with only the ability to adjust Gamma settings. With the new version I actually enjoyed using it and the feature becomes much more practical.

Comparing the Panasonic PT-AX100U and the PT-AX200U

When we first reviewed this model's predecessor we did a comparison and it only seems fair to keep up the tradition. This time around the differences are much more difficult to spot, as this really is just an incremental change. Here’s a quick overview of differences:

PT-AX100U PT-AX200U
2000 ANSI lumens 2000 ANSI lumens
6000:1 (on/off) contrast ratio 6000:1 (on/off) contrast ratio
Dynamic Iris with Light Harmonizer (Gamma) System Dynamic Iris with Light Harmonizer 2 (Gamma + Sharpness + Lamp power + Iris) System
220W UHM lamp 220W UHM lamp
D-5 LCD panel D-5 LCD panel
290W power 290W power
Dynamic Iris Dynamic Iris
1 HDMI input 2 HDMI inputs
Backlit remote Backlit remote
Full 1080p/24/60 support Full 1080p/24/60 support
No Game mode Game mode
10.8lbs 10.8lbs
15.5” x 4.4” x 11.8” 15.5” x 4.4” x 11.8”
Starting MSRP: $2,999 Starting MSRP: $1,999

The remote controls are almost identical, except that the PT-AX200U replaces the Sleep button with a dynamic Function button that can be assigned to any number of functions, depending on your preference (I set mine to activate Game mode):

PT-AX100U-remote.jpg PT-AX200U-remote.jpg
PT-AX100U remote (left) and PT-AX200U remote (right)

PT-AX200U Basic Setup and Installation

The 2x zoom and 25% horizontal and 63% vertical lens shift means that you can place this projector at any position except the extremes of the screen boundaries. I like nice zoom lenses since they allow for both longer and shorter throws and can be used in a variety of rooms and with large variances of screen sizes. Take, for example a 120-inch screen (a common but large size). You can hit that size screen from a little as 12 feet away (smaller room) or as far as 24.5 feet away (a rather nice sized theater room.) The 16:9 throw chart (which hasn’t changed from the prior two models) looks like this:

Throw Chart for Distancing the Projector from a 16:9 Projection Screen

Screen Size
Diagonal (inches)

Size (Inches)

Distance (Feet)


width

height

wide

tele

70

61.0

34.3

6.8

14.1

80

69.7

39.2

7.9

16.2

90

78.4

44.1

8.9

18.3

100

87.2

49.0

9.9

20.3

110

95.9

53.9

11.0

22.4

120

104.6

58.8

12.0

24.5

130

113.3

63.7

13.1

26.6

150

130.7

73.5

15.1

30.7

We did our visual evaluations, measurements and benchmark testing on a 100” Stewart Studiotek 130 screen with Luxus Deluxe screenwall system. This is a nice screen and the felt lining ensures that any overshoot is not apparent to the eye. We used datacolor ColorFacts Professional software to measure this system and with 2000 lumens you have a lot to work with in terms of screen size and ambient light use. Want to play video games during the day with the windows open? That is probably not a major problem provided you don't have the sun hitting directly on the screen. I found that only the darkest scenes created difficulty with light entering the room.

As is typical, we utilized an adjustable-height projector stand that elevated the projector to the appropriate position so that we minimized the amount of horizontal and vertical lens shift required to get a nice square image to the screen.

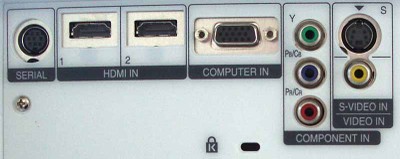

Connections

As we mentioned, the new PT-AX200U has the identical inputs as its predecessor, save for an additional HDMI input. This HDMI input has its own associated memory so you can truly store picture and calibration settings for it without interfering with the other source component. The AC plug is still proprietary (grrr) and there is no IR input or trigger output, meaning that while this projector has TS-232C control capabilities, it's not completely installer-friendly depending upon the particular situation and requirements.


HDMI Quirkiness

We utilized SHR HDMI cables (from DVIGear) for all of our testing and sent signal from our reference Denon DVD-3930CI DVD player, an Xbox 360, a Toshiba HD-XA2 HD DVD player and a Sony Playstation3 console. The HDMI connection went through a PureLink HDMI switcher and, in the case of the Xbox 360 and Toshiba HD DVD player, also passed through a Denon AVR-4306 AV receiver.

Sound confusing? Well it isn't, but since HDCP, the content protection scheme behind HDMI, was not, until recently, included in the detailed HDMI spec, there are still compatibility issues in the marketplace. Panasonic seems to suffer from some of these compatibility issues. I can say this with a reasonable amount of confidence due to the number of projectors I've had through this theater which have not, under the same setup had issues.

The “quirkiness” I ran into involved video dropping out from the HD DVR provided by my cable company (a Scientific Atlanta Explorer 8300HD) and audio dropping out of the tracks from my Denon DVD-3930CI. To help troubleshoot the situation, I replaced the switcher with another but the problem persisted. I have not encountered HDCP-related dropouts on any other projector in this system that I can recall save, coincidentally, the PT-AX100U. I had no difficulties with either the Xbox 360 (running through the receiver AND switch), PS3 (receiver AND switch) or the HD DVD player (receiver AND switch). Both the DVD player and the cable box bypassed the Denon AV receiver and simply routed through the external HDMI switch. All I can say is check your return policy and make sure you have some options for how you might want to connect the Panasonic in your system. You may have no problems at all, but it's something to note.

Initial Setup

Like its predecessor, we recommend you set the Picture Mode to Cinema1, leave Dynamic Iris On, and set Lamp Power to Low. At this point you’ll be in great shape to watch the unit in a light-controlled room. I actually enjoyed using the Light Harmonizer this time around as it controlled not only Gamma, but lamp power, Iris and image Sharpness. The effect was well-received by me and I think the system is now suitable for use in most cases. If you only intend to use this projector in a theater setting, then you can crank down the Iris, disable the Light Harmonizer and ensure the lamp stays in Low power mode. This will also extend the life of your bulb.

Sharpness was left at -2. Increasing it any further simply accentuates any poor edge enhancement or compression artifacts that may be on the screen. I also noted that the Overscan default was +7 on my unit. I pulled this back to 0 as I rarely encounter any edge artifacts on my source signals. Popping this back to even +1 will eliminate most lines that may show up on the side of various cableTV transmissions.

The all-important Brightness and Contrast were spot-on for Cinema1 mode. I found that I could tweak the Contrast to +1 however, while that satisfied my test pattern, I noticed a significant color shift towards green. I opted to leave it as it was.

The Menu System

With the exception of the Function button, where you can designate one of the many options for its use on the remote control, the Menu system is pretty much unchanged in the PT-AX200U. For a more exhaustive breakdown of the menu system you can read the review of the PT-AE900U projector, on which this system is based.

PT-AX200U Calibration and Benchmark Tests

PT-AX200U-CIE-colors.jpgLike the PT-AX100U, the PT-AX200U handles reds and blues to the maximum limits of NTSC color. Greens tend to be a bit desaturated – though towards blue rather than yellow. Here are the Contrast Ratios I measured in the various Picture modes:

  • Game (default) – 1623:1
  • Cinema1 – 661:1
  • Normal – 1746:1
  • Dynamic – 2074:1

I also took a brief survey of the various color temperatures and confirmed that with a simple setting you could get very good ISF-type levels from this projector out of the box without too much hassle:

  • Cinema1 – 7000K
  • Normal – 8800K
  • Game – 9000K
  • Natural – 7700K
  • Cinema2 – 7600K
  • Dynamic – 7900K
  • Vivid Cinema – 6550K

The first thing I did upon seeing the slightly increased temperature for the default Cinema1 mode, is attempt to bump down the Color Temp slider by -1 to see what would happen. The result was almost exactly 6500K. Now, be advised, some people just don't like 6500K whites. You may prefer a slightly less red white level at the default 7000K and who am I to argue with the settings put in place by Hollywood colorists? In any case, realize that bumping this setting is what yielded the results below.

Measurements

We utilized datacolor’s ColorFacts Professional 6.0 software to calibrate and measure the grayscale response of the PT-AX200U. Panasonic is again making sure that users have some very helpful default settings “out of the box”. We measured the Cinema1 mode and received the following excellent results:

RGB Levels

Color Temperature



You’re looking at the Cinema1 mode with no calibration. Red and blue only lead green slightly from 40 IRE onward. That bump at 30 could be smoothed out, but overall I felt no pressing need to calibrate this projector beyond the defaults.

Color is all but pinned at 6500K from 40-80 IRE, dropping only slightly thereafter. The dips at 30 and below didn't really bother me too much and I was quite impressed with how well this projector fared overall.

These are very close to exactly what I expect to see “pre-calibration”. Often I find that the variance in color response is much more erratic and rarely do we find projectors at this price which don't really demand calibration to deliver a great picture.

Audioholics/HQV Bench Testing Summary of Test Results

Perfect Score is 130
Panasonic PT-AX200U Benchmark Score: 90
(identical to the PT-AX100U as expected)

Test Max
Points
Component
Results
Component
Pass/Fail
Color Bar 10 10 Pass
Jaggies #1 5 5 Pass
Jaggies #2 5 5 Pass
Flag 10 5 Pass
Detail 10 10 Pass
Noise 10 5 Pass
Motion adaptive Noise Reduction 10 0 Fail
Film Detail 10 10 Pass
Cadence 2:2 Video 5 5 Pass
Cadence 2:2:2:4 DV Cam 5 5 Pass
Cadence 2:3:3:2 DV Cam 5 0 Fail
Cadence 3:2:3:2:2 Vari-speed 5 0 Fail
Cadence 5:5 Animation 5 0 Fail
Cadence 6:4 Animation 5 5 Pass
Cadence 8:7 animation 5 0 Fail
Cadence 3:2 24fps film 5 5 Pass
Scrolling Horizontal 10 10 Pass
Scrolling Rolling 10 10 Pass
Total Points 130 90

Comments on Benchtesting

There were no surprises here. We ran the HQV suite of tests and found identical results to the PT-AX100U. A score of 90 shows that the Panasonic has an adequate video processor for the most important processing duties. The fact that it marginally passed the flag test, however, shows that it may be a tad favorable towards the tests and not tweaked as well for real-world content.

When running the Moving Zone Plate tests, 2/3 passed while 2/2 and the Default failed. There was plenty of flickering at higher speeds, but I detected no breakup of the image in any direction.

PT-AX200U Viewing Evaluation HDTV Movies

This is where the metal meets the meat... where Panasonic shows us exactly how well this projector can handle real images with color, detail and dark scenes. I wanted to start off by testing some games and then move to HDTV and movies. At this price point the PT-AX200U is a no-brainer for gaming, but it also seems to be targeted for an all-in-one projector for all your home theater needs as well.

advertisement

Xbox 360: Halo3
Halo3.jpgHalo3 put the Xbox back on top of the gaming war... well, for a couple of days at least... In any case, this first person shooter is most known for its online multi-player game play. I am always a fan of good story lines, of which this game has a meager one. In any case, the graphics are a giant step forward for the franchise and there is plenty of test fodder for the new gaming mode of the PT-AX200U to try out. The cut scenes are incredible, with many areas just thanking me for giving them a gamma mode whereby darker areas of the action can be seen. There are a lot of details in a console experience that get completely lost when you don't calibrate the display to the characteristics of a typical Action or FPS game. The Panasonic seems to take care of this for you, bringing out detail that you simply would have assumed wasn't there. My favorite was rock and cave wall detail as well as the lower areas of the forest where plants emerged from the bottoms of trees.

Halo3-1.jpg Halo3-2.jpg

Halo3-3.jpg Halo3-4.jpg

Playstation3: Warhawk
warhawk.jpgWarhawk is a fun game that entertains, but doesn't necessarily take advantage of the greatest photorealistic aspects of the PS3. Textures are realistic, but something is just “wrong” with the lighting – casting you as a player into a more surreal experience rather than pulling you into a world where you feel as if you are part of the action. I loved the dogfights and experiencing the beautiful reveals as distant land objects appeared through cloud cover as I approached. Atmosphere effects were pretty good overall and the PT-AX200U revealed everything in its power. Even way in the distance, the projector put forth detail in the leaves of trees and textures became more and more detailed as your character moved across the grassy turf towards hangers filled with vehicles. I realize one big advantage of the Panasonic is in its reduced lag time, however I simply didn't have the gaming prowess to determine if the Game mode helped in a practical way in this area. I spent more time appreciating the default picture settings it provided.

Warhawk1.jpg Warhawk3.jpg


HDTV: College and NFL Football (1080i)
I know the PT-AX200U is targeted towards the gaming community, but what about real games... I'm talking football – which is a staple down here in central Florida. If you don't have a home team, you better pick one quick – and it better be the Gators (you Seminole and USF fans can argue all you want). I figured I'd queue up some Gator college ball as well as some Tampa Bay NFL action on my 100-inch screen. On the first NFL picture I show, check out the grass and texture detail on the close-up of the football. The cable company sends a compressed HD signal with overblown white levels, so it's often difficult to get a nice screen capture, but the key is to look for one of the better cameras. On any given game there will be 2-3 really good cameras with the super-expensive lenses. Don't get me wrong, the rest of the cameras are certainly not cheap, but there are a couple that are out of this world. When those shots come on the screen, you just know it.

NFL1.jpg NFL2.jpg

HD DVD: Eagles Farewell I Tour:Live from Melbourne
This disc is by no means all about the video, but it does render some intense shadow detail as well as a lot of skin, hair and clothing textures which served as pretty good fodder for my evaluation of this projector. Glenn Fry's face showed that even in high definition he still looks great after all these years. Note the strings on the guitar – there were no problems when converting this 1080p 24 source signal to the native 720p/60 projector resolution. In checking the band's lighting on stage, I saw only smooth gradations of the spots, no banding or other artifacts seemed to be present. This projector had a very smooth grayscale response.

Eagles1.jpg Eagles2.jpg

Conclusion

This projector has a retail of under $2000 and a street price of less than $1,300. At that price it's hard to criticize anything at all, let alone try and find something on this well-rounded projector. The only thing that is a real sticking point – and it's a big one – is whether the Panasonic has inherent HDCP issues that need more testing. I encountered some on my system and no other projectors before or since did the same – that tells me that a certain percentage of people may have similar issues. HDCP-issues aside, this is one fantastic projector. Initial “out-of-the-box” measurements were above average and certainly acceptable. Colors are vivid, detail is sharp and accurate and the lens shift and zoom functions make this one of the easiest projectors to install.

Panasonic PT-AX200U LCD Projector

MSRP: $1,999

Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
www.panasonic.com

About Panasonic
Best known by its Panasonic brand name, Matsushita Electric Industrial Co., Ltd. is a worldwide leader in the development and manufacture of electronic products for a wide range of consumer, business, and industrial needs. Based in Osaka, Japan, the company recorded consolidated net sales of US$81.44 billion for the year ended March 31, 2005. The company's shares are listed on the Tokyo, Osaka, Nagoya, New York (NYSE:MC), Euronext Amsterdam and Frankfurt stock exchanges. For more information on the company and the Panasonic brand, visit the company's website at http://panasonic.co.jp/global/index.html.

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

  • StarStarStarStarStar — Excellent
  • StarStarStarStar — Very Good
  • StarStarStar — Good
  • StarStar — Fair
  • Star — Poor
MetricRating
Detail and ResolutionStarStarStarStar
Deinterlacing & ScalingStarStarStarStar
Contrast and Black LevelsStarStarStarStar
Color ReproductionStarStarStarStarStar
Noise ReductionStarStar
Calibration OptionsStarStarStarStar
Build QualityStarStarStarStar
Ergonomics & UsabilityStarStarStarStar
Ease of SetupStarStarStarStarStar
FeaturesStarStarStarStar
Remote ControlStarStarStarStar
Fit and FinishStarStarStarStarStar
PerformanceStarStarStarStar
ValueStarStarStarStarStar
