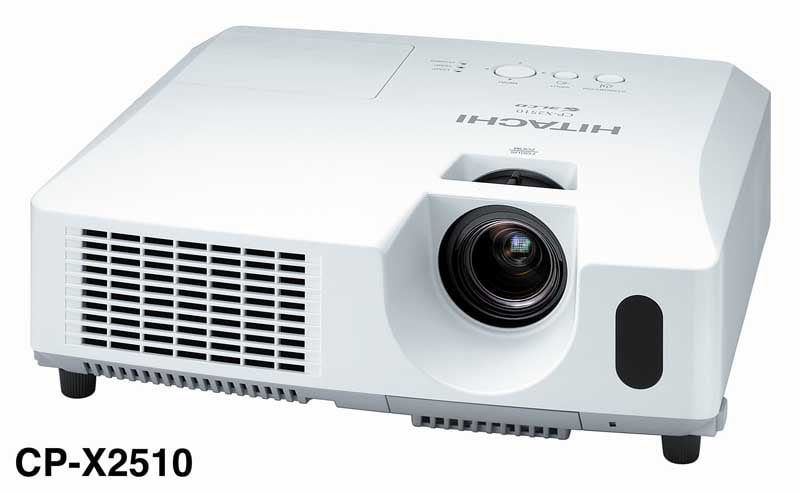

Hitachi CP-X2510 3LCD Projector Review

Hitachi CP-X2510 Full Review

The needs of Wall Street are not much different than the needs of Main Street, in the A/V world anyway.  Bright light, quality picture, and good contrast are a must.  One difference would be the need for a business projector to have a longer life, due to the litany of boardroom (bored-room?) hours associated with awful Power Point presentations.  Note to self and others: Just because you have PowerPoint as a part of your MS Office Suite doesn’t mean you know how to prepare a presentation, nor give one.

The business/classroom and house of worship market has a barrage of LCD projectors to choose from, the key is finding the best solution for your needs.  Removing the CP-X2510 projector from the box did not reveal much difference from the typical business-class projector.  I was interested to see if some of the latest advances in the residential market had been translated to the corporate side. It turns out the business projector market has its own surprises.

Description and Build Quality

At first glance, the physical projector seemed compact and delivered the typical input/outputs seen so many times on this class of projector. HDMI was nowhere to be seen, but the typical array of inputs you'd find in the classroom or boardroom was available in quantity (more on this later). All of the inputs and outputs were grouped at the rear of the projector, where they were easy to get to. Except for the lack of DVI or HDMI inputs, the projector impressed us with two (count 'em) HD15 inputs (component video compatible), component video RCA inputs, composite and S-video inputs.

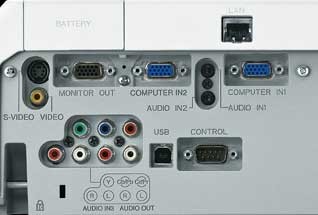

Note that the RJ45 Ethernet port shown above is only available on the CP-X2510N model

Another nice feature we see creeping up in the business projector world is the option of an Ethernet port. This particular model was not networkable, however Hitachi Business does have the cousin to this same model available to install with your network (CP-X2510N). This option allows for the monitoring and managing of one or more projectors from a remote location – pretty cool if you are seeking to manage a suite of rooms or displays from a single computer. RS-232 control is possible on this product and the unit can even send a pass-through monitor output for daisy chaining images. There are three audio inputs, two mini 1/8-inch ports for the VGA inputs and a stereo pair that can be shared with the composite, S-video and component video inputs.

For those using this projector with a laptop or PC, the included USB connector can enable basic mouse controls on the remote control to manipulate, for example, a presentation on your PC.

Setup and Use

Mounting the projector was done in a typical style of hanging it upside down from a Peerless PRG-UNV universal projector mount which was affixed to an Auton ceiling projector lift. Once situated, all connections were easily accessible at the rear of the projector. The power input was, atypically, located on the side of the unit which presented a potential issue for those hoping to group all cables tightly in a single direction. Due to the lack or HDMI and DVI inputs, we used our laptop's VGA video port to send signal to the projector.

The setup of the CP-X2510 did not require much more than a pulse.  Plug in the power, plug in an input, and turn on the projector.  The controls from the remote were very easy to understand, and adjustments were made very quickly to optimize the image to our viewing pleasure. Primarily we were concerned with setting the right Black and White levels, something made easy by our Avia Pro DVD (you could also use Windows Media Center's built-in calibration controls). After a few adjustments on the projector mount, and adjusting the height of the screen, we were soon testing the true quality of the output.

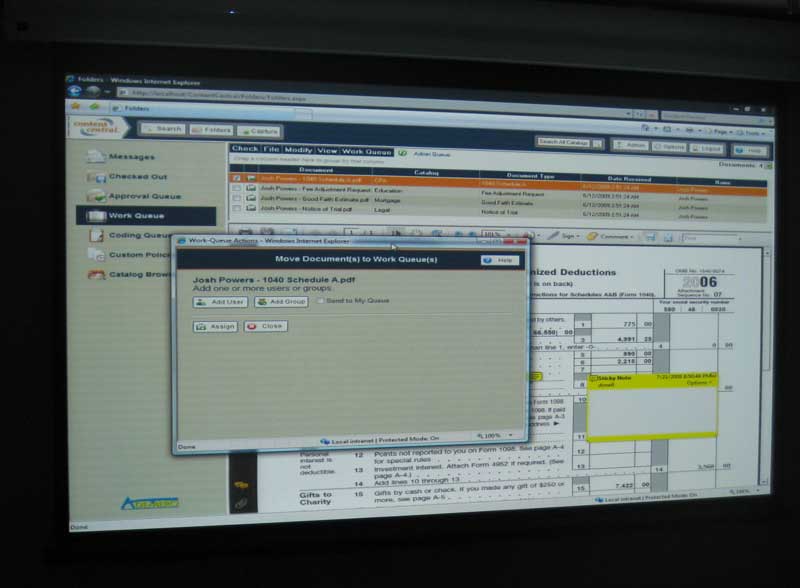

After setting up the projector we allowed the Auto Keystone function to straighten out the picture which was displaying on our SI Screens electric drop screen. The Auto Keystone definitely helped, but it didn't nail the image perfectly. With a quick surf through the user manual, we flipped the Keystone setting to Manual and made a few minor adjustments. The picture quality was excellent, and we didn’t notice any bleeding. Colors were perfect and quite vivid – the 2600 ANSI lumens were definitely enough to fill our 80" screen with plenty of light, even with the conference room lights on. The lines seemed very crisp and defined, and with the lights dimmed the Hitachi revealed an even sharper picture with better contrast.  One noticeable con was the 4:3 native, 1024 x 768 resolution.  Most laptops are now widescreen, as was the one we were using to test.  This proved difficult finding a resolution that would fit our 16:9 screen, with the use of our widescreen hp laptop. The key was using a compatible 16:9 or 16:10 resolution and then engaging the 16:9 computer signal scaling mode on the Hitachi CP-X2510.

Conclusion

Once we had everything set up and working, we never really had to touch the projector over the next several weeks.  Since our projector was mounted on a motorized lift that lowered from the ceiling, it was quite impressive when clients came over and experienced the full automated presentation process.  After many uses and many lifts up and down from above, the projector remained focused and aimed correctly. Hitachi's CP-X2510 projector is an excellent value and a great performer. With a street price under $700 this is a go-to model for anyone not requiring DVI or HDMI connectivity. It's an incredible bargain given its features and quality. It is bright, crisp and has the flexibility to be used in a myriad of situations. The Keystoning capability and color controls means that power users will be able to successfully dial it in for presentation use with little difficulty. For those hoping to bring it home for home theater use there are other models and options which might make for a better choice.

About Hitachi
Hitachi Home Electronics (America), Inc., Business Group, subsidiary of Hitachi America, Ltd., markets LCD projectors, interactive panels and whiteboards and security and observation system products through value added resellers, system integrators, distributors and OEM.

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

• — Excellent
• — Very Good
• — Good
• — Fair
• — Poor

Metric	Rating
Detail and Resolution
Deinterlacing & Scaling
Contrast and Black Levels
Color Reproduction
Calibration Options
Build Quality
Ergonomics & Usability
Ease of Setup
Features
Remote Control
Fit and Finish
Performance
Value
