Focal 302 On Wall Speaker Introduction

With over 30 years as a CEDIA technology integrator, I’ve had the opportunity to design sound systems for virtually every type of room imaginable. From fully dedicated theaters to bedrooms and lofts, however, most of my projects have centered around open floorplan living areas or great rooms. These types of rooms, in particular, present unique challenges. Historically, options were often limited to small satellite box speakers or basic in-wall designs, many of which left much to be desired regarding audio performance.

At one point, the industry pivoted toward systems where all the speakers—including the front left, center, and right channels—were placed in the ceiling. While some products attempted to address this with angled speakers aimed at the seating position, the results were often far from ideal. The effectiveness of these setups heavily depended on factors like ceiling height, seating positions, and the truss layout of the room. While this approach became popular for its aesthetic appeal, it came at the cost of immersive, high-quality audio. Unfortunately, this trend persists in many installations, often executed by companies with little to no real understanding of audio design principles.

These equipment compromises often stem from factors like the Spouse Acceptance Factor (SAF) or strict interior design constraints where tower, bookshelf, or center channel speakers were off the table. With the proliferation of flat-panel TVs, companies like James Loudspeakers began pioneering innovative products, including high-quality passive LCR soundbars that combine sleek aesthetics with robust sound. This evolution eventually paved the way for slim on-wall speakers—an increasingly popular choice for setups around large TVs or projection screens. These speakers strike a balance between traditional box designs and lifestyle-oriented soundbars, offering both compact form and high audio performance. They also outperform the powered soundbars that have seen significant mass adoption over the last decade.

This is where the Focal 302 On Wall Speaker comes in—and it’s the focus of this review. Designed to directly address the shortcomings of traditional architectural solutions and ceiling-based speaker arrays, the Focal 302 offers a refined, audiophile-grade listening experience in a sleek, wall-mounted form.



Focal, a company renowned for its high-end speakers and studio monitors, exemplifies this trend with its Focal 302. These speakers deliver true high-performance on-wall sound capable of rivaling and, in some cases, outperforming traditional bookshelf designs. Combining stunning aesthetics with powerful sound, the Focal 302 is available in White High Gloss and Satin Black finishes. Part of Focal’s 300 Series, which includes the smaller 301 for TVs between 55" and 75", the larger 302 is best suited for TVs 85” and above or projection screens, ensuring a perfect visual balance while delivering exceptional performance.

Focal 302 On-Wall Speaker Appearance

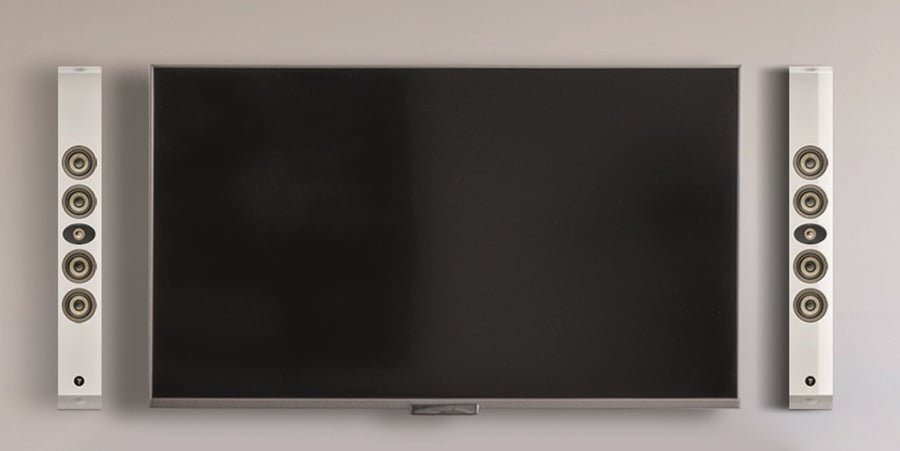

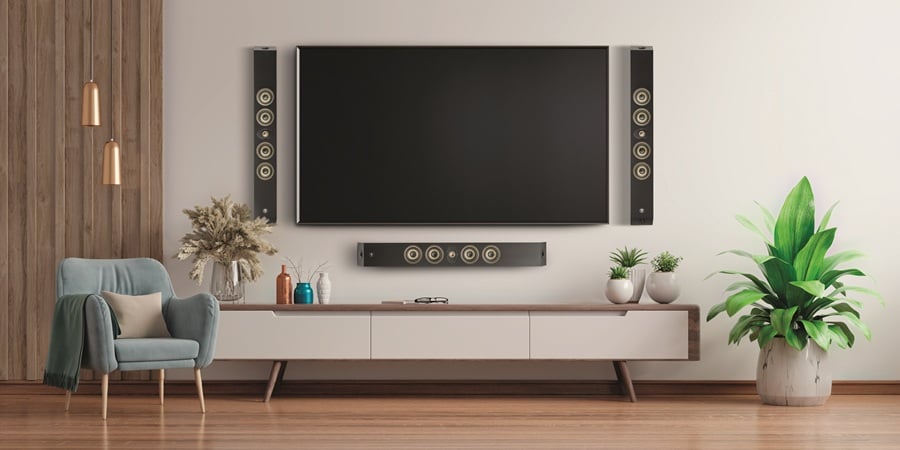

The Focal 302’s slim, modern profile blends seamlessly with flat-panel TVs, making it an excellent choice for most modern interiors. The speaker is available in White High Gloss and Satin Black finishes, both of which exude understated elegance. Dominated by flax fiber cones, the front of the speaker has a distinctive aesthetic that audiophiles will appreciate. For a cleaner look, magnetic grilles can be attached, ensuring a minimalist appearance without compromising sound quality.

Mounting the 302 is straightforward, thanks to the included wall brackets. Its slim 3.9-inch depth allows it to sit flush against the wall, enhancing both the aesthetics and the bass response—a key advantage of its design. Focal also offers high-quality floor stands for the 302 and 301 models, allowing them to be used as traditional in-room speakers. This option is ideal for contemporary environments where wall mounting is not feasible or preferred.

Focal 302 On-Wall Speaker Design Analysis

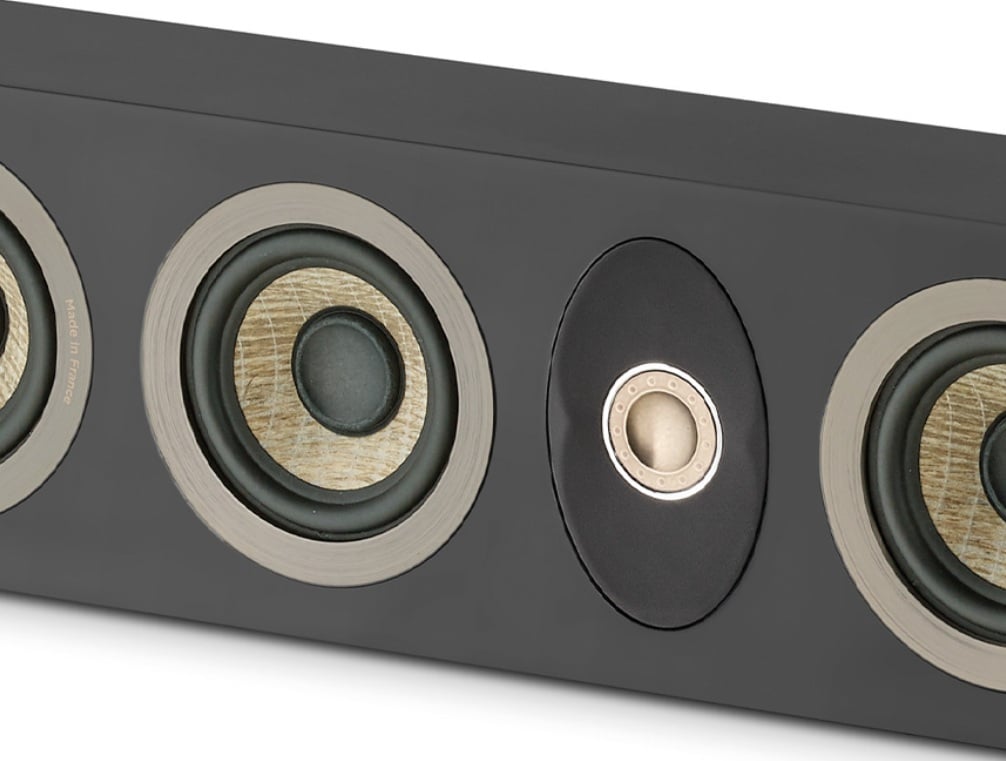

The Focal 302 is a 2.5-way on-wall speaker engineered to deliver audiophile-level sound while maintaining a compact and elegant form factor. Its driver arrangement and advanced materials demonstrate Focal’s commitment to performance and innovation.

Tweeter:

The 1-inch inverted dome aluminum-magnesium tweeter delivers exceptional clarity and detail. Known for its excellent dispersion characteristics and low distortion at high frequencies, this tweeter design is a hallmark of Focal’s engineering expertise.

Mid-Bass Drivers:

The 302 features four 4-inch flax mid-bass drivers, arranged in an MTM (Midrange-Tweeter-Midrange) configuration. Flax, a natural material, provides a unique combination of rigidity and lightness, resulting in natural tonality and dynamic midrange performance. These drivers also deliver punchy, controlled bass that exceeds expectations for an on-wall design. The 302’s four x 4” midbass drivers give you roughly the surface area of a single 8” woofer.

Cabinet Design and Porting:

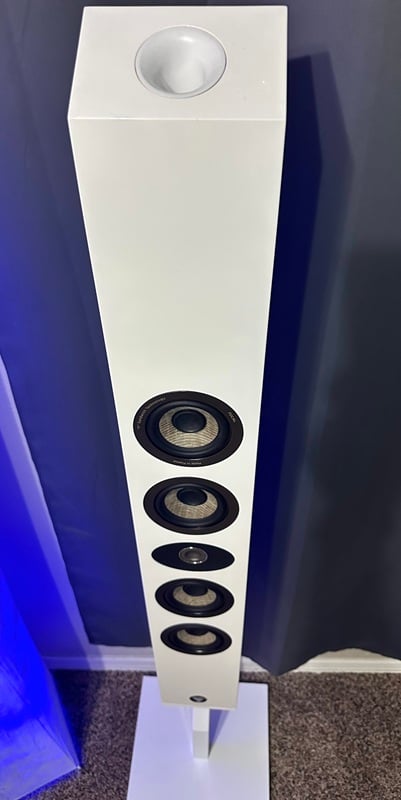

Unlike many on-wall speakers that struggle with bass, the 302 incorporates dual slot-style ports—one at the top and one at the bottom—to enhance low-frequency performance. The cabine is constructed from high-quality materials to minimize resonance and distortion, ensuring clean, accurate sound.

Focal 302 On-Wall Speaker System Setup and Equipment

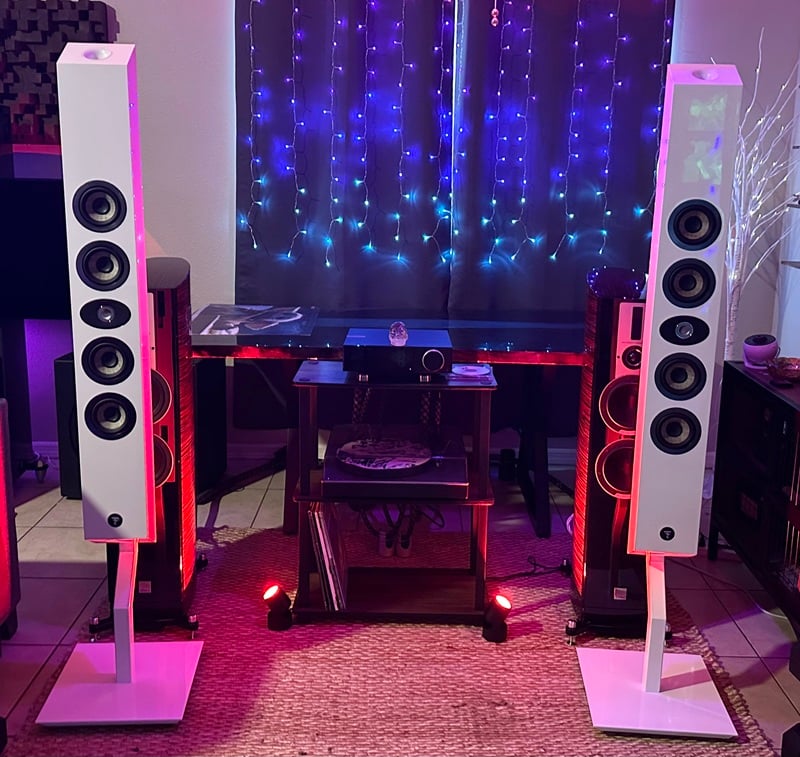

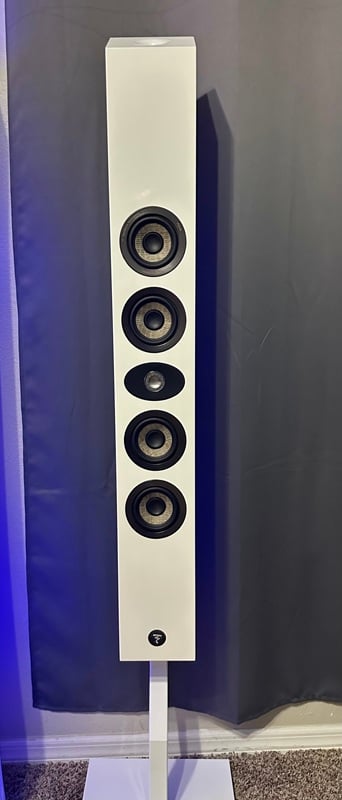

For this review, I tested the Focal 302s in a 14’ x 18’ room. The speakers were mounted on Focal’s optional steel floor stands, positioning the tweeters at ear level for an optimal listening experience. This configuration replaced my usual Focal Kanta No. 2 towers, providing a clear benchmark for comparison.

The system was powered by the Yamaha MX-A5200 amplifier, delivering 150 watts per channel of clean, Class A/B power, and the Marantz AV7706 surround preamp, which ensured precise signal processing. For additional bass support, a pair of SVS SB3000 subwoofers were integrated into the system, crossed over at 80Hz for seamless low-end extension.

Sources included the Oppo BDP-103 Blu-ray player for movies and the Apple TV for streaming Atmos content. For music, I utilized the HEOS app to stream high-resolution tracks from Tidal, as Qobuz is not yet available on the platform. The system was calibrated to provide a balanced and immersive listening experience, ensuring the Focal 302s were evaluated under ideal conditions. Listening sessions were run in stereo, running the 302’s full range without subs, then crossed over at 80hz with the SB3000’s engaged. This would prove to show a true picture of the speaker's capabilities, good or bad.

Focal 302 On-Wall Speaker Listening Tests

Music Demos

“I Follow Rivers” by Roni Alter

Roni Alter’s haunting rendition of “I Follow Rivers” is an intricate piece that demands both precision and emotional depth from a speaker. The Focal 302s exceeded expectations, delivering a captivating performance that drew me in from the first note. Alter’s voice was rendered with striking clarity and warmth, floating effortlessly in the center of the soundstage. The subtleties in her delivery—slight breaths, tonal shifts, and the gentle vibrato—were presented with a level of detail that added emotional weight to the song.

The instrumental layers, featuring soft strings and delicate percussion, showcased the 302s’ ability to maintain separation and coherence within a wide soundstage. Each element felt precisely placed, allowing the music to envelop the room without losing focus. The bass response, while naturally limited by the 302s’ slim profile, was tight and rhythmically accurate, providing a solid foundation for the track.

Engaging the dual SVS SB-3000 subwoofers transformed the listening experience. The subs added a rich, enveloping depth to the bass frequencies, giving the track a fuller and more immersive quality. The subtle reverb in the string instruments became more pronounced, and the overall presentation took on a grander scale. With the subs, the 302s punched well above their weight class, delivering a performance that felt akin to much larger and more expensive systems.



“If You Love Me” by KastomariN

KastomariN’s “If You Love Me” is a dynamic electronic track that tests a speaker’s ability to handle rapid transitions and deep basslines. The Focal 302s tackled the track with impressive agility, rendering the intricate layers of synthesizers with remarkable clarity. Each element—whether a shimmering high-frequency pad or a pulsating mid-bass groove—was distinct yet cohesive, creating a rich tapestry of sound.

Played at high SPLs, the 302s maintained composure, delivering a clean and powerful performance without distortion. The rhythmic beats were punchy and engaging, while the treble sparkled with precision, avoiding any harshness even at elevated volumes. This track demonstrated the 302s’ capacity for both accuracy and energy, striking a balance that kept me fully engaged.

When the SVS SB-3000 subs were added to the mix, the track’s low-end impact was magnified, delivering a visceral physicality that elevated the listening experience. The deep basslines gained weight and presence, filling the room with a commanding sense of power. Despite the added bass energy, the subs seamlessly integrated with the 302s, preserving the pristine midrange and treble. The combination was exhilarating, transforming the listening session into a real high-powered experience, much bigger than I expected as these slim speakers can throw down. This also showcased the synergy between the 302s paired with high-quality subwoofers.

“Seaside Swing” by Sean Twomey

Sean Twomey’s “Seaside Swing” is an Alt Rock-infused track that emphasizes tonal accuracy and natural imaging, providing a fantastic test for the Focal 302s. The interplay between the guitar, double bass, and brushed snare drum was rendered with stunning realism. The double bass carried an organic texture that felt true to life, while the brushed snare hits were crisp and detailed, each stroke clearly defined within the soundstage.

The 302s excelled at reproducing the track’s intricate dynamics, shifting effortlessly between the delicate guitar passages and the more energetic bass runs. The speakers created a cohesive and immersive soundstage, making it easy to visualize the musicians performing in front of me. The clarity and tonal balance of the 302s brought out the nuances in Twomey’s arrangement, highlighting the artistry behind the composition.

When the SVS SB-3000 subwoofers were engaged, the double bass gained additional weight and authority, providing a richer foundation for the track. The subs also added a tactile quality to the snare drum, as if the drummer were performing just a few feet away. This pairing brought the track to life in a way that was both engaging and true to the essence of the performance. The Focal 302s, combined with the subs, delivered a fantastic listening experience.

Movie Demos

The Tank Assault Scene – Fury

David Ayer’s Fury (2014) is a gritty and intense World War II film, starring Brad Pitt, Shia LaBeouf, and Logan Lerman. The tank assault scene is widely regarded as a masterclass in sound design, immersing viewers in the chaos of mechanized warfare. Using the Oppo BDP-103 Blu-ray player, I put the Focal 302s through their paces with this heart-pounding sequence.

The sharp, explosive reports of the German 88mm cannons caught me off guard, delivering sheer impact and dynamic range that I hadn’t anticipated from a speaker of this type. The 302s rendered the blasts with precision and authority, while the ricocheting sounds of tank shells and metallic debris created a three-dimensional soundscape. What stood out most was how clear the dialogue and commands from Pitt’s character, Wardaddy, cut through the chaos, emphasizing the Focal 302s’ impressive midrange clarity.

Although not as formidable as my Kanta No. 2 towers, the 302s more than held their own remarkably well in this demanding scene. They delivered a cinematic experience that felt much larger than their slim form factor suggested. The dual SVS SB3000 subwoofers brought the rumble of tank engines and explosions to life, turning my listening space into a virtual battlefield. The system worked really well as all the speakers featured very similar drivers, so coherency was on point. I could definitely live with this setup.



The Pod Race Sequence – Star Wars Episode I: The Phantom Menace

The pod race scene from The Phantom Menace (1999) is a fan-favorite for its adrenaline-pumping visuals and complex sound design. Directed by George Lucas and featuring standout performances by Liam Neeson and Ewan McGregor, the movie is filled with memorable moments. Using the Oppo BDP-103 Blu-ray player, I revisited this iconic sequence to evaluate how the Focal 302s handled the chaos of pod racers tearing through the Tatooine desert.

From the opening hum of Sebulba’s “Hot Rod” pod to the roaring engines of Anakin Skywalker’s racer, the 302s captured every detail with precision. The sounds of shifting sands, engine failures, and blaster fire were rendered with remarkable clarity, even as the soundstage became increasingly complex. When Jabba the Hutt tossed a creature off his balcony to signal the start of the race, the subtle nuances of the crowd's cheers and distant pod racers revving up added layers of immersion.

What impressed me most was how the 302s allowed the film’s rich soundtrack to shine through, even during the chaotic race. This clarity ensured that John Williams’ iconic score wasn’t lost amidst the sonic mayhem. The dual SVS SB3000 subs once again enhanced the low-end energy, making the pod racer engines feel as though they were shaking the room.

Atmos Music Demo – Pink Floyd’s “Money”

The 50th Anniversary Atmos mix of Pink Floyd’s Dark Side of the Moon is a triumph of immersive audio. Streaming the track “Money” via Apple TV, I marveled at how the Focal 302s created a vivid and expansive soundstage that captured every nuance of this classic track.

The opening cash register loops, so iconic to the song, seemed to move around the room, establishing a spatial presence that was both engaging and lifelike. The 302s placed David Gilmour’s guitar solo front and center with incredible precision, allowing each note to soar with clarity and emotion. The vocal harmonies were rich and enveloping, floating effortlessly in the mix without ever feeling buried.

When the track transitioned into its famous instrumental breaks, the interplay between instruments was a standout moment. The Focal 302s showcased their ability to handle complex arrangements, ensuring each element—basslines, saxophone solos, and rhythm guitars—was distinct and impactful. With the dual SVS SB-3000 subs engaged, the track’s low-end had an added depth and punch, giving the kick drum and bass guitar a visceral presence that completed the experience.

Focal 302 On-Wall Speaker Measurements

Measurements by Gene DellaSala

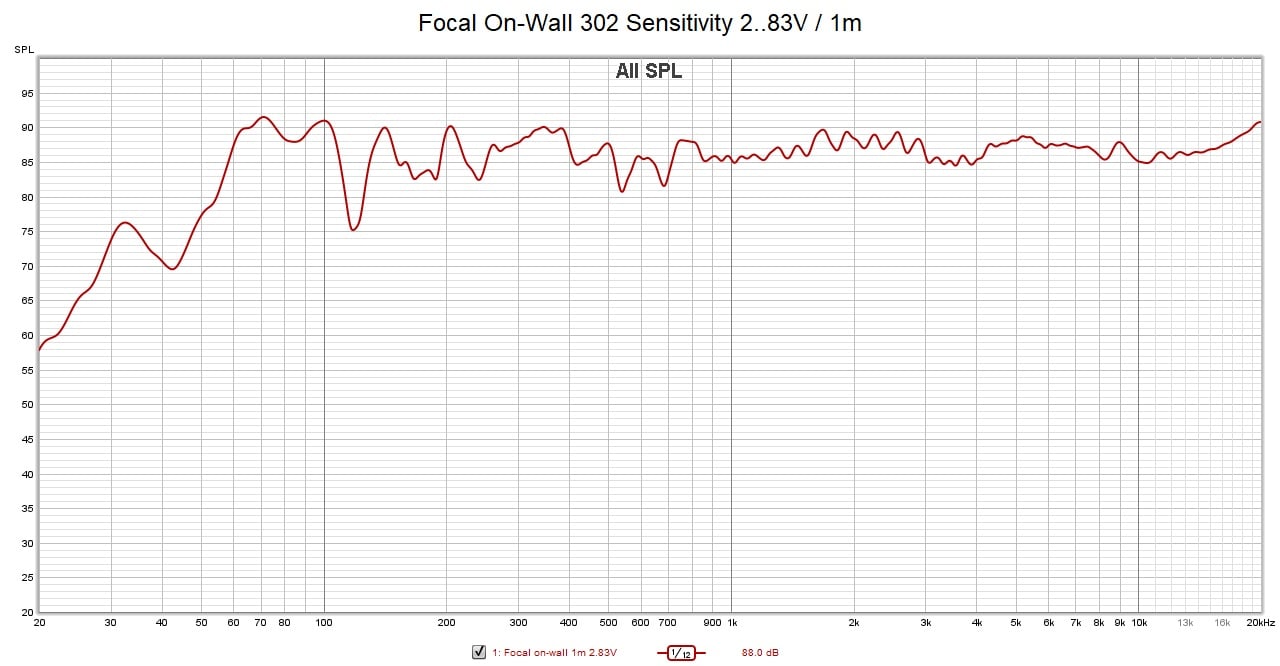

Focal claims the 302 On-Wall speaker has a sensitivity of 91dB, but their specification is vague, as it does not specify the bandwidth, input signal, or measurement distance. I can only assume they mean 2.83V/1m, but my measurements yielded approximately 88dB from 300Hz to 3kHz, following the IEC 60268-4:2018 standard.

Focal On-Wall 302 In-Room Measurement @ 1 meter

This is a pretty impressive in-room measurement as you can see the response is very linear above the room modal region (200-300Hz). The tweeter level is set about 2-3dB hot but that’s easily adjustable with some EQ and in fact may be preferable considering this speaker will go up against a wall and will get further bass enhancement as a result. Usable bass extension is around 50Hz as specified by Focal. That’s impressive for an on-wall speaker with quad 4” drivers.

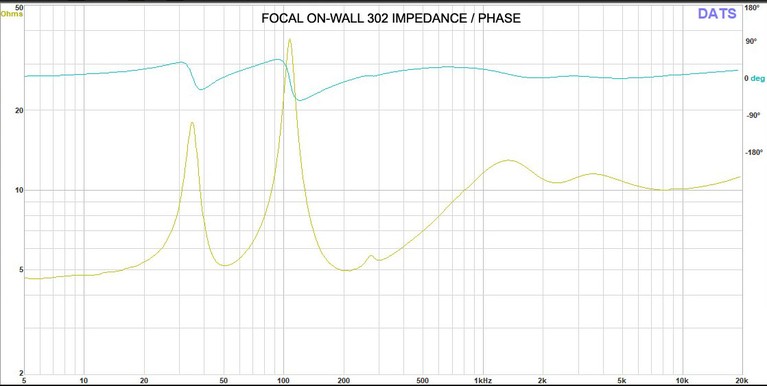

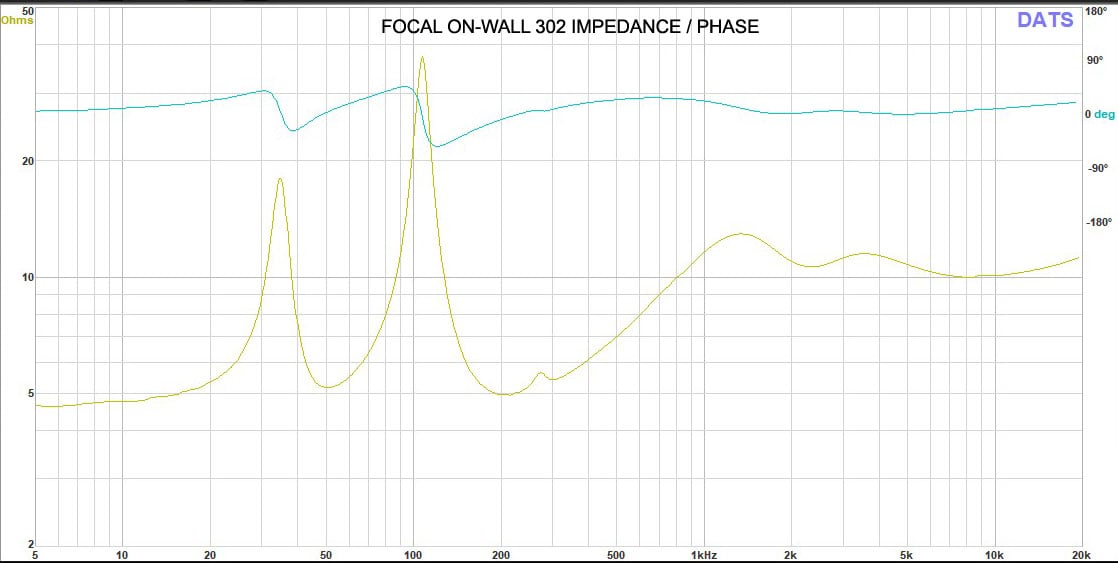

Focal On-Wall 302 Impedance/Phase

Focal specifies the On-Wall 302 speaker as 8 ohms, with a minimum impedance of 5 ohms. According to IEC definition, a speaker’s impedance must not drop below 80% of its nominal rating between 300Hz and 3kHz, which, in this case, would be 6.4 ohms. If I were nitpicking, I would rate this as a 6-ohm speaker, but given its relatively high sensitivity and smooth phase response, any modestly powered AVR should have no trouble driving it to satisfactory levels. The 302 is tuned to 50Hz, as indicated by the saddle points between the impedance maxima. The slight wiggle around 270Hz could suggest some port resonance.

Focal 302 On-Wall Conclusion

We are living in a golden age of home audio, where innovations in design and technology make it possible to achieve exceptional sound performance in almost any space. The Focal 302 On-Wall Speaker exemplifies this trend with its seamless blend of style, performance, and installation flexibility. It’s an ideal solution for those with limited space who refuse to compromise on audio quality.

Despite their compact design, the Focal 302—and its sibling, the 301—are not mere lifestyle speakers. These are true high-fidelity solutions, engineered to deliver remarkable sound quality in a small footprint. Their slim and elegant form factor makes them perfectly suited for modern living spaces, while their sonic capabilities rival those of larger, more traditional speakers.

Paired with a subwoofer, the 302 excels in both music and home theater applications, providing a versatile and high-quality audio solution. These speakers could easily find a home in family rooms or smaller theaters as LCRs flanking a large projection screen, as well as surround sound bed layers in more complex setups. For spaces where large box speakers aren’t practical or where walls are too shallow for architectural models, the 302-301 series stands as a compelling, high-performance alternative.

Priced at $1,749 per speaker, the 302 occupies a premium segment, but it justifies the investment with exceptional build quality, refined aesthetics, and the unmistakable Focal sound signature. Whether integrated into a 2-channel music system or a full-fledged home theater, the Focal 302 proves itself as a standout performer.

For those exploring alternatives, consider the Paradigm Millenia LP XL at $750 per speaker or the RBH 555-IWR at $1,150 per speaker—both of which are excellent options with unique strengths. However, for those who value true high-fidelity sound and a timeless design that fits seamlessly into any room, the Focal 302 and 301 are hard to beat. Recommended.
