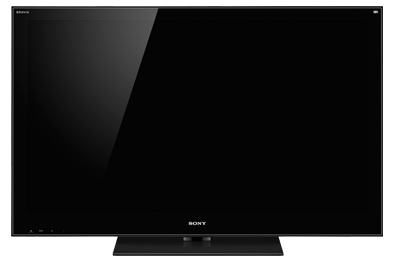

Sony BRAVIA XBR-46HX909 LED 46" Preview

Model#: XBR-46HX909

•Video Signal : 1080/60p (HDMI / COMPONENT), 1080/24p (HDMI ONLY), 1080/60i, 720/60p, 480/60p, 480/60i

•BRAVIA Internet Video : Yes

•DLNA : Renderer (Photo/JPEG); Renderer (Music/LPCM,MP3); Renderer (Video/MPEG2,AVCHD); Client (Photo/JPEG); Client (Music/LPCM,MP3); Client (Video/MPEG2,AVCHD)

•DLNA : Yes

•Photo MAP : Yes

Video Features

•24p True Cinema Technology : Yes

•3D : Ready

•3D Comb Filter : Yes

•4:3 Default : Yes

•Advanced Contrast Enhancer (ACE) : Yes

•Auto Wide : Yes

•CineMotion Reverse 3:2 Pulldown Technology : Yes

•Cinema Mode : Yes

•Deep Color : Yes

•Intelligent Image Enhancer : Yes

•Intelligent MPEG Noise Reduction : Yes

•Live Color Technology : Yes

•Motionflow PRO Technology : 240Hz

•PhotoTV HD : Yes

•Picture Mode : Vivid, Standard, Cinema, Game-Standard, Game-Original, Graphics, Sports, Photo-Vivid, Photo-Standard, Photo-Original, Photo-Custom

•Video Processing : BRAVIA Engine 3™ Technology

•Wide Mode : Normal, Zoom, Wide Zoom, Full (Full1-2 for PC), H Stretch

Audio

•Audio Power Output : 20W (10W x 2)

•Speaker Configuration : 2

•Speakers (Total) : 2

Regulation and Standard Compliance

•VESA Hole Pitch : 300x300 M6

•VESA Hole Spacing Compatible : Yes

Inputs and Outputs

•AC Power Input : 1 (Rear)

•Analog Audio Input(s) (Total) : 4 (1 Side / 3 Rear)

•Audio Out : 1 (Rear)

•Component Video (Y/Pb/Pr) Input(s) : 2 (1 Rear / 1 Rear (Composite input common use))

•Composite Video Input(s) : 2 ( 1 Rear (Component input common use)/ 1 Side)

•Digital Audio Output(s) : Optical Digital Output - 1 (Rear)

•Ethernet Connection(s) : 1 (Rear)

•HDMI Connection(s) (Total) : 4(2 Side/2 Rear)

•HDMI PC Input : Yes (see owner's manual for supported timings)

•PC In (D-Sub) + Audio In (Stereo Mini) : 1 (Rear)

•RF Connection Input(s) : 1 (Rear)

•RS-232C Input(s) : 1 (Rear)

•USB 2.0 : 1 (Side)

Weights and Measurements

•Dimensions (Approx.) : 44 3/8 x 28 5/8 x 15 3/4" (1124 x 727 x 400mm) with pedestal; 44 3/8 x 27 3/8 x 2 3/4" (1124 x 695 x 67mm) without pedestal

•Packaging (Approx.) : 55 1/2 x 30 1/2 x 7 1/4" (1407 x 772 x 182mm)

•Weight (Approx.) : 79.8 lbs. (36.2kg) with pedestal; 66.6 lbs. (30.2kg) without pedestal

Energy Saving & Efficiency

•Backlight Off Mode : Yes

•Dynamic Backlight Control : Yes

•Eco Settings : Yes

•Energy Saving Switch : Yes

•Energy Star compliant : Yes

•Idle TV Standby : Yes

•LightSensor Technology : Yes

•Power Saving Modes : Yes

Display

•Aspect Ratio : 16:9

•Display Resolution : Full HD 1080(1920x1080)

•Dynamic Contrast Ratio : Infinite6

•Screen Size (measured diagonally) : 46"

•Viewing Angle (Right/Left) : 178(89/89)

•Viewing Angle (Up/Down) : 178(89/89)

General Features

•Audio Return Channel : Yes

•Closed Captions (CC) : Analog, Digital

•Finish (Surface Color) : Black

•HDMI InstaPort : Yes

•Illuminated Sony Logo : Yes

•RS-232C Control : Yes

•XMB : Yes

Audio Features

•5.1 Channel Audio Out : Yes

•5.1ch Through Out (Handycam) : Yes

•Alternate Audio (Digital) : yes

•Audio Out : Variable/Fixed

•Auto Mute (on no signal) : Yes

•Auto SAP : Yes

•Clear Voice : Yes

•Dolby : Dolby Digital

•Invisible Speaker (w/Sound Elevation) : Yes

•S-Master : Yes

•Sound Enhancer : Yes

•Sound Mode : Dynamic, Standard, Clear Voice, Custom

•SteadySound Automatic Volume Control : Yes

•Stereo System : MTS

•Surround Effect : Cinema, Music, Live Sports, Game

Power

•Power Consumption (in Operation) max. : 184W

•Power Consumption (in Standby) : 0.12W

•Power Requirements (frequency) : 60Hz for UL,cUL 50/60Hz for other

•Power Requirements (voltage) : AC 120V for UL,cUL AC110-240V for other

Service and Warranty Information

•Limited Warranty Term : 18 Months Labor / 18 Months Parts

•Online Instruction Manual (Reference Book) : Yes

Convenience Features

•Ambient Sensor : Yes

•Auto Photo Mode : via HDMI, via DLNA, via USB

•Auto Picture Setting w/ HDMI : Cinema, Sport, Music, Photo, Graphics, Game

•Auto Shut-off : Yes

•BRAVIA Sync : Yes

•BRAVIA Sync Menu Button : Yes (on Remote Control)

•Channel Block (with password) : Yes

•Channel Jump : Yes

•Channel Labels : Yes

•Channel Surf : Yes

•Control for HDMI (HDMI CEC) : Yes

•Edit Channel Labels : Yes

•Favorites : Yes

•Info Banner : TV Guide on Screen, PSIP, XDS

•Input Skip : Automatic

•Label Inputs : Yes

•Multiple Language Display : English, French, Spanish

•On-Screen Clock : Yes

•On-Screen Display for External Input : Yes

•On-Screen Operating Instructions : Yes

•On/Off Timer : Yes

•PIP (Picture in Picture) : PC Input/TV Channel&CVBS

•Parental Control : Yes

•Picture Adjustments Lock : Yes

•Picture Frame Mode : Yes

•Quick Start : Yes

•Scene Select : Auto, Cinema, Sports, Photo, Music, Game, Graphics, General

•Show/Hide Channels : Yes

•Skin Naturalizer : Yes

•Sleep Timer : Yes

•Stand Swivel : Yes

•Stand Swivel Range : Left 20°/Right 20°

•Stand Tilt : Yes

•Stand Tilt Range : 2 position 0°/Back6°

•Start Up Sony Logo Display : Yes

•TV Guide On-Screen : Yes

•Theatre Mode (Theatre Button) : Yes

•Theatre Mode with Cinema Surround : Yes

•USB Application(s) : Photo Viewer (jpeg), Photo Viewer (RAW), Music Player (mp3), Video Player (AVCHD), Video Player (AVC), Video Player (MPEG4)

•USB Player : Yes

•Upward Style : Yes

•White Balance : RGB Gain/Bias

•Wireless LAN : Ready

Display Features

•Backlight Type : Intelligent Dynamic LED

•Display Device : LCD

•OptiContrast Panel : Yes

TV System

•Channel Coverage : VHF: 2-13ch UHF: 14-69ch CATV (analog): 1-135ch CATV (digital) : 1-135ch

•Color System : NTSC

•Number of Tuners (Digital) : 1(Hybrid)

•TV System (Analog) : M

•Tuner (Cable) : Clear QAM

•Tuner (Terrestrial) : ATSC / NTSC
