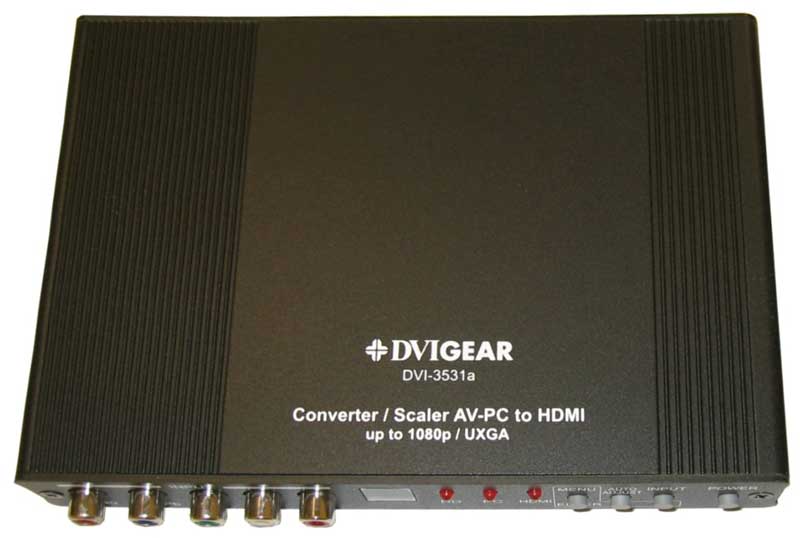

DVIGear DVI-3531a HDMI Converter Scaler
DVIGear's new AV-PC to HDMI Converter / Scaler is targeted towards custom installers and integrators who need a one-solution product to convert incoming audio and video signals to a single HDMI stream. This rather versatile unit can take either DVI-D, component or VGA (PC) input, along with an audio source, and convert the output to a single HDMI stream (with integrated audio). The system can also scale the video input to various output resolutions up to 1920x1200 @ 60Hz. It includes 3D motion-adaptive deinterlacing as well as high-quality analogue to digital converters to maintain audio fidelity throughout the conversion process.
Each input format supports its own stereo audio
connection (RCA for component and separate 1/8-inch mini connections for the others). The selected input signal is converted to a digital HDMI
signal with embedded audio. This unit accepts a wide range of input
signal resolutions and support pixel clock rates up to 165 MHz. Most
importantly, it provides user-selectable output resolutions (via on-screen display) up to 1080p
and 1920x1200 (W-UXGA) using two high-performance internal scaling

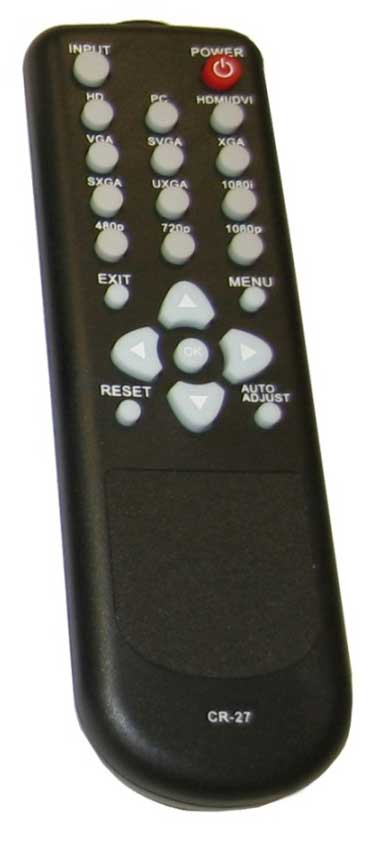

engines. Control is provided via the front panel or included IR remote control. Direct input and output source and resolution settings are possible from the remote, making macro programming a breeze.
Key Features
- Supports Analog + Digital HDTV inputs up to 1080p resolution
- Supports Analog + Digital PC inputs to 1920x1200 / 60Hz resolution
- Digital HD Video Output up to 1080p resolution
- Digital PC RGB Output to 1920x1200 / 60Hz resolution
- Supports both YPbPr and YCbCr HDTV input formats
- Analog audio inputs are integrated into digital HDMI output
- Twin high performance scaling engines
- 3-D Motion Adaptive De-Interlacers
- 3-D Noise Reduction
- 3:2 Pull-Down w/2:2 Pull-Down Recovery
- 8 Bit Triple-ADC/PLL
- Intuitive On-Screen Display
- Front Panel or Infrared Remote Control
Model Number |
|
DVI-3531a |
Converter / Scaler AV-PC to HDMI |

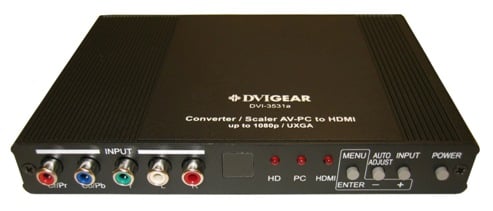

Input Connections |
|
HDMI - digital HDTV Video |
via 1x HDMI Connector |
PC - RGB Video |
via 1x HD-15 Connector |
HD - Analog Component HDTV Video |
via 3x RCA Connectors |
Input Format / Resolutions |
|
Analog / Digital PC RGB |
up to 1920x1200 / 60Hz |
Analog / Digital HDTV |
YPbPr / YCbCr up to 1080p |
DVI format |
Single-Link DVI-D |
Signal Clock Rates Supported |
up to 165 MHz |

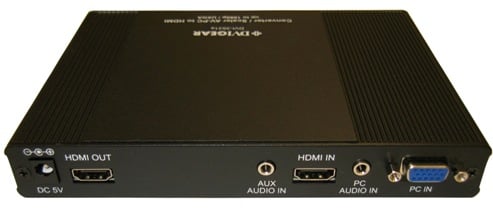

Output Connection |
|
HDMI Digital HDTV Video |
via 1x HDMI Connector |
Output Format / Resolutions |
|
HDMI Digital PC |
up to 1920x1200 / 60Hz |
HDMI Digital HDTV |
up to 1080p |
Scaling Engine |
|
Number of Engines |
Two (2) |
Phased Lock Loops Employed |
8-bit triple ADC |
De-Interlacers |
3D Motion Adaptive |
Noise Reduction |
3D |
Pull-Down |
3:2 + 2:2 Recovery |
HDMI Receiver |
HDMI (v1.2a) and DVI + HDCP |
Image Component Processing |
Full Time / Full Range |
Audio Inputs |
|
Analog Stereo (Line in) |
via 2x RCA Connectors |
PC Audio Stereo In |
via 3.5mm Stereo Audio Connector |
Aux Audio Stereo In |
via 3.5mm Stereo Audio Connector |
Mechanical |
|
Size (H x W x D) |
1” x 7.0” x 5.35” (25.5 x 179 x 136 mm) |
Weight (Net) |
15.8 Oz (448 g) |
Warranty |
|
Limited Warranty |
1 Years Parts and Labor |
Environmental |
|
Operating Temperature |
0° to +48° C (+32° to +120° F) |
Operating Humidity |
10% to 85%, Non-condensing |
Storage Temperature |
-10° to +70° C (+14° to +158° F) |
Storage Humidity |
10% to 85%, Non-condensing |
Power Requirement |
|
External Power Supply |
Input: 100-240VAC @50/60Hz Output: 5VDC @2A |
Regulatory Approvals |
|
Converter Unit |
FCC, CE, RoHS |
Power Supply |
UL, CE, CSA, RoHS |
Accessories Included |
|
1x External AC Power Adapter, 1x User Manual, 1x IR Remote Control |
|
1x HD-15 Male to HD-15 Male Cable |
|
1x 3-RCA Male to 3-RCA Male Cable |
|
