Yamaha RX-V863 AV Receiver Overview

By
Yamaha RX-V863

Yamaha RX-V863

Summary

  • Product Name: RX-V863 AV Receiver
  • Manufacturer: Yamaha Electronics
  • Review Date: February 28, 2008 12:25
  • MSRP: $999.95
  • First Impression: Gotta Have It!

High Sound Quality

  • HD audio format support: Dolby Digital Plus, Dolby Digital TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio
  • 7-channel 735W powerful surround sound (105W x 7)
  • Digital ToP-ART and High Current Amplification
  • Pure Direct for higher fidelity sound reproduction
  • Burr-Brown 192kHz/24-bit DACs used in all channels
  • Assignable amplifiers for bi-amp connection


High Picture Quality

  • Analog video (480i or 480p) upscaling to full HD 1080p
  • 1080p-compatible HDMI (3 in/1 out)
  • Supports Deep Color (up to 36 bit), x.v.Color, a double speed Refresh Rates of 120Hz and 1080p/24Hz transmission, and Auto Lip-Sync compensation
  • Analog video to HDMI digital video upconversion and deinterlacing with TBC


Advanced Features

  • 4 SCENE buttons offering greater operating ease (with 19 preset SCENE templates)
  • HD Radio™ digital broadcast reception capability
  • XM ready with XM HD Surround powered by Neural Surround
  • SIRIUS Satellite Radio ready
  • Improved YPAO for automatic speaker setup
  • iPod compatibility via Yamaha Universal Dock
  • Bluetooth (A2DP) compatibility with Yamaha Bluetooth® Wireless Audio Receiver (YBA-10)
  • Superior multi-zone control compatibility



Surround Realism

  • Fine-tuned CINEMA DSP and Adaptive DSP Level
  • Improved Compressed Music Enhancer
  • Adaptive DRC (Dynamic Range Control)

Other Notable Features

  • XM ready with XM HD Surround powered by Neural Surround
  • SIRIUS Satellite Radio ready
  • 40-station preset tuning / Auto preset tuning
  • HD Audio LPCM 7.1-channel reception (up to 192kHz)
  • High dynamic power and Linear Damping
  • Low Jitter PLL Circuitry
  • Assignable amplifiers for bi-amp connection
  • Initial Volume and Maximum Volume Setting
  • iPod song titles displayed in English and Western European languages ISO 8859-1 (Latin 1) on the front panel and on-screen display
  • Improved Compressed Music Enhancer with Straight Enhancer program
  • Adaptive DRC (Dynamic Range Control)
  • SILENT CINEMA and Virtual CINEMA DSP
  • Preout terminals for front, center, surround and surround back, and dual mono subwoofer out
  • 9 selectable subwoofer crossover frequencies
  • Subwoofer phase select
  • Front panel video Aux input terminals with optical digital and S-Video input terminals
  • 8-channel or 6-channel external input
  • Phono input
  • Speaker A, B, A+B selection
  • Preset remote unit with illuminated buttons



It wasn't that long ago that Audioholics was showcasing the flagship RX-Z11 at last year's Audioholics Annual State of the CE Union Show in Clearwater Florida. That 11.2 receiver sure made waves but what made many of our attendees (and those that read about the event in envy afterward) was what that meant for Yamaha's next wave of receivers. Well, wonder no longer because they are here!

The Yamaha RX-V863 is the top of the new line offering from Yamaha. At a paltry $999, I was surprised that Yamaha didn't have an offering at a higher price point. Frankly, $1k isn't that much for a higher end receiver and competitors usually have one or two at higher price points. This made me wonder if the RX-V863 had skimped on features. Fortunately I was mistaken.

The RX-V863 supports native decoding of all the latest audio formats with 3 in/1 out HDMI 1.3 ports. On top of that it also supports Deep Color (up to 36 bit), 120Hz refresh rates, and 1080p/24Hz transmission. Essentially, all the latest goodies. Two of the seven 105 watt amplifiers are assignable for bi-amp or Zone 2 configuration and it has plenty of connections for all your AV gear (including 3 in/1 out component video). 192kHz/24-bit Burr-Brown DACs and ADCs ensure that quality will be top notch when the audio is encoded and/or decoded for final consumption.

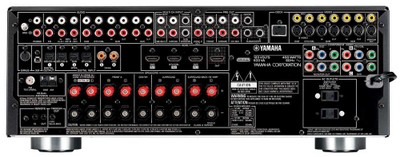

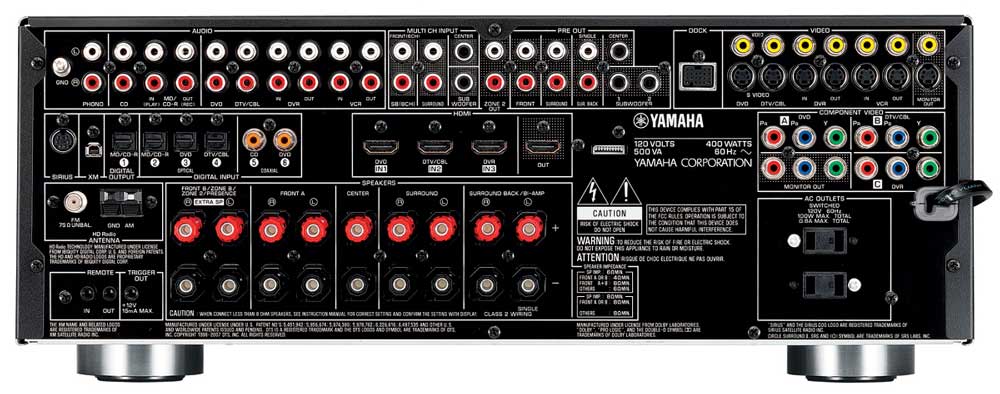

RX-V863 Rear Connections

Want to take advantage of that single cable to your display but don't feel like upgrading all your source components? No problem, the Yamaha RX-V863 performs analogue video (480i or 480p) upscaling to 1080p. 7.1 channel analogue inputs will keep you future-proof in case Toshiba decides to make another run at high definition DVD using crystals or something. Of course, 7.1 analogue preamp outputs are available for integration with external amps.

As to be expected with Yamaha, extras abound with no less than 17 DSP surround modes. On top of that, we have more useful extras like iPod and Bluetooth compatibility (both require peripherals), an HD radio tuner, and the receiver is XM and Sirius Satellite-ready. But probably the coolest extra is the "extra" subwoofer output. This is a feature that makes our little audioholic hearts jump for joy. While Joe Consumer may not understand why he needs two subs, he understands that he's got two ports so he obviously need two, right? The only downside is that these dual subwoofer outputs can only be used in zone one and not split between the primary Zone and the secondary. Yamaha's YPAO is back again, ensuring that setup will be a breeze and you can use the integrated automatic parametric EQ to tweak your room (or even configure it manually if you so desire). The remote is roughly the same remote we've seen for the past few years in this line and offers nothing new or impressive, though it is certainly functional. The keys do seem to be better backlit than in prior iterations and for that we are thankful.

While it is easy to get excited about new AV offerings, the price and features of the Yamaha RX-V863 have definitely piqued our interest. We can't wait to get a unit in for a full review. For more information, please visit www.yamaha.com or check it out online at store.audioholics.com.

Unless otherwise indicated, this is a preview article for the featured product. A formal review may or may not follow in the future.
